/ Product catalogue / Decentralized ventilation units / Decentralized HRU for residential buildings / Advanced / Vento Expert A100 / Vento Expert A100-1 L035 S W V.2
| Unit of measurement | Vento Expert A100-1 L035 S W V.2 | ||||
| Minimum supply voltage | V | 100 | |||
| Maximum supply voltage | V | 240 | |||
| Power supply frequency | Hz | 50/60 | |||
| Air flow in ventilation mode | m³/h | 18 | 30 | 58 | 108 |
| Air flow in heat recovery mode | m³/h | 9 | 15 | 29 | 54 |
| Sound pressure level LpA at 1 m | dB(A) | 23 | 27 | 40 | 51 |
| Heat recovery efficiency, max | % | 88 | |||
| Heat exchanger type | - | Regenerative | |||
| Heat exchanger material | - | Ceramic | |||
| Transported air temperature (max) | °С | 40 | |||
| Transported air temperature (min) | °С | -20 | |||
| Ingress protection rating | - | IP24 | |||
| Trademark | Blauberg | |||||
| Model | Vento Expert A100-1 L035 S W V.2 | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -78.3 | A+ | -38.4 | A | -15.6 | E | |
| Type of ventilation unit | Bidirectional | |||||
| Type of drive installed | Variable speed | |||||
| Type of heat recovery system | Regenerative | |||||
| Thermal efficiency of heat recovery (%) | 68 | |||||
| Maximum flow rate (m³/h) | 54 | |||||
| Electric power input (W) | 18 | |||||
| Reference flow rate (m³/s) | 0.008 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.228 | |||||
| Control typology | Local demand control | |||||
| Maximum internal leakage rates (%) | 2.7 | |||||
| Mixing rate (%) | 1 | |||||
| Airflow sensitivity at +20 Pa and -20 Pa (%) | 0.2 | |||||
| The indoor/outdoor air tightness (m³/h) | 5.2 | |||||
| Declared typology | RVU BVU | |||||
| Sound power level (dB(A)) | 50 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 132 | 132 | 132 | ||||
| Name | Photo | Description |
|---|---|---|
| Blauberg CD-1 |
|
CO2 sensors |
| Blauberg CD-2 |
|
CO2 sensors |
| Name | Photo | Description |
|---|---|---|
| Blauberg AH-10 chrome 160 |
|
Plastic hoods decoration of supply and exhaust vents of public, residential and industrial ventilation systems |
| Name | Photo | Description |
|---|---|---|
| Blauberg KIT BlauPlast white 160 |
|
Kit for angular mounting (for walls with standard thickness) |
| Blauberg KIT BlauPlast chrome 160 |
|
Kit for angular mounting (for walls with standard thickness) |
| Name | Photo | Description |
|---|---|---|
| Blauberg FP2 Vento G3 |
|
G3 filter kit (2 pcs.) |

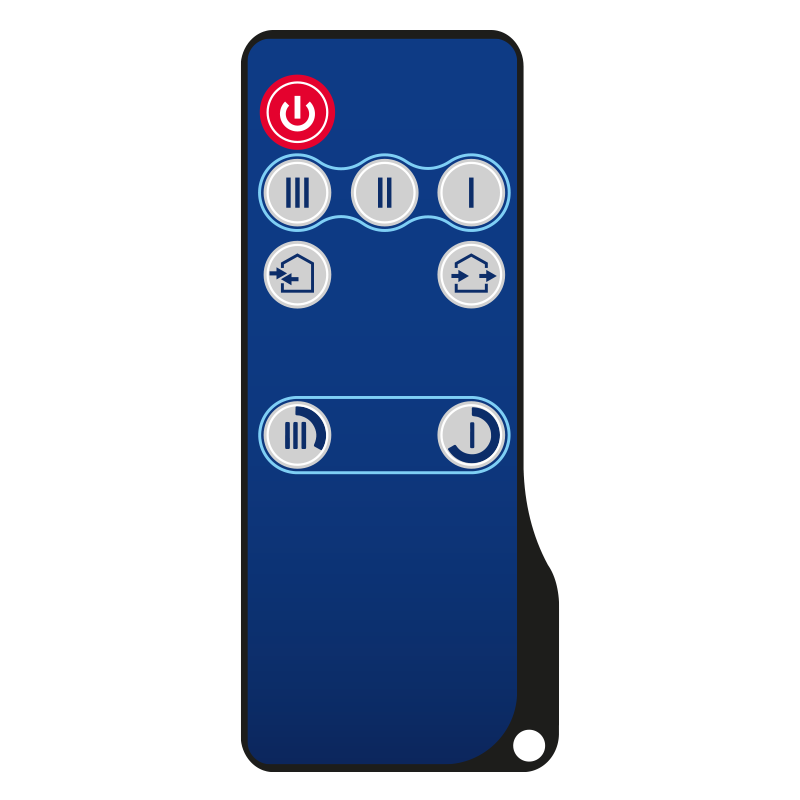

| Blauberg FB-Vento Expert |
|
Remote control |
| Name | Photo | Description |
|---|---|---|

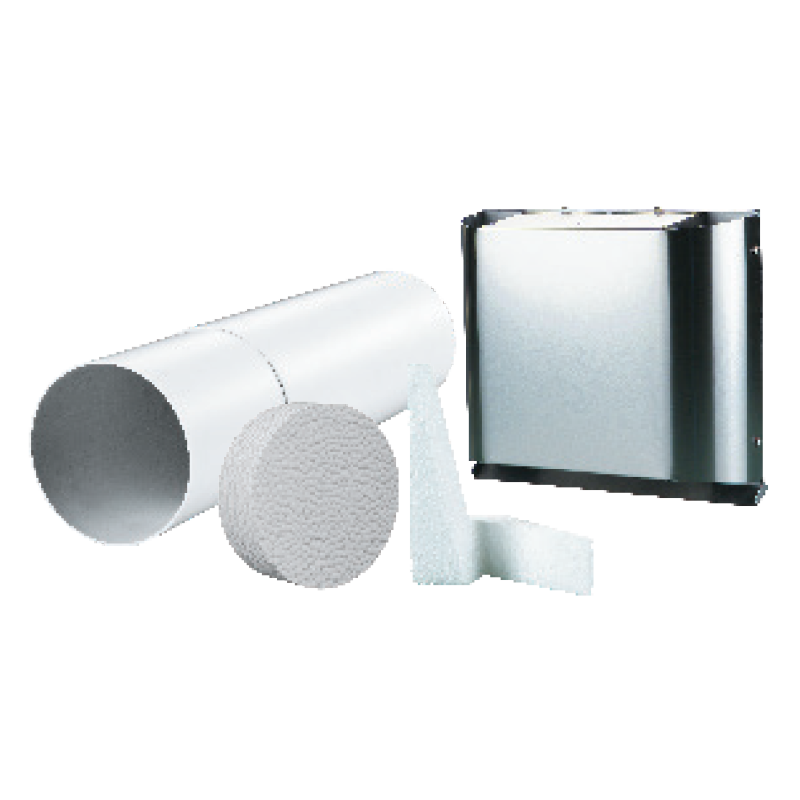

| Blauberg Pre-installation Kit Vento Expert A50-1 S |
|
Pre-installation kit for mounting into thin walls. Includes: air duct; AH-S chrome 160 outer ventilation hood; polystyrene foam plug; polystyrene foam wedges. |

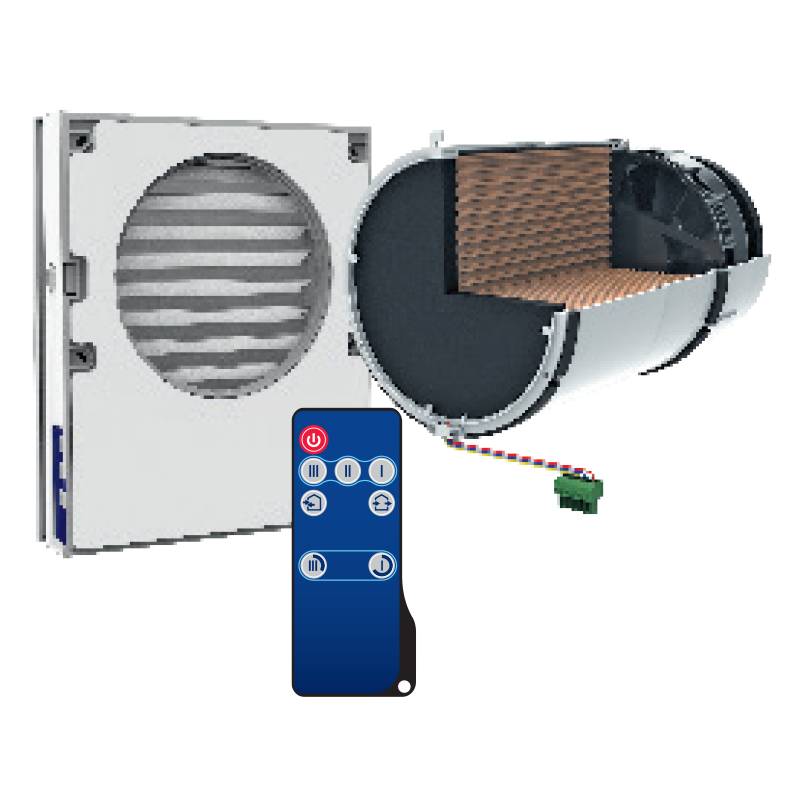

| Blauberg Completion Kit Vento Expert A50-1 Pro V.2 |
|
Final mounting kit. Includes: cartridge with a heat exchanger, a fan and G3 filters; indoor unit with a controller and shutters; remote control. |
