/ Product catalogue / Decentralized ventilation units / Decentralized HRU for residential buildings / Advanced / Vento Ergo / Vento Ergo A85-3 L035 S Pro V.3
| Unit of measurement | Vento Ergo A85-3 L035 S Pro V.3 | |||
| Phases | - | 1 | ||
| Minimum supply voltage | V | 100 | ||
| Maximum supply voltage | V | 240 | ||
| Power supply frequency | Hz | 50/60 | ||
| Maximum airflow | m³/h | 36 | 59 | 85 |
| Air flow in heat recovery mode | m³/h | 18 | 30 | 43 |
| Heat recovery efficiency, max | % | 85 | ||
| Heat exchanger material | - | Ceramic | ||
| Transported air temperature (max) | °С | 40 | ||
| Transported air temperature (min) | °С | -20 | ||
| Ingress protection rating | - | IP24 | ||
| Name | Photo | Description |
|---|---|---|
| Blauberg FP Vento Ergo A50 G3 | G3 filters (2 pcs.) | |
| Blauberg FPC 150x50 G4 |
|
Filter |

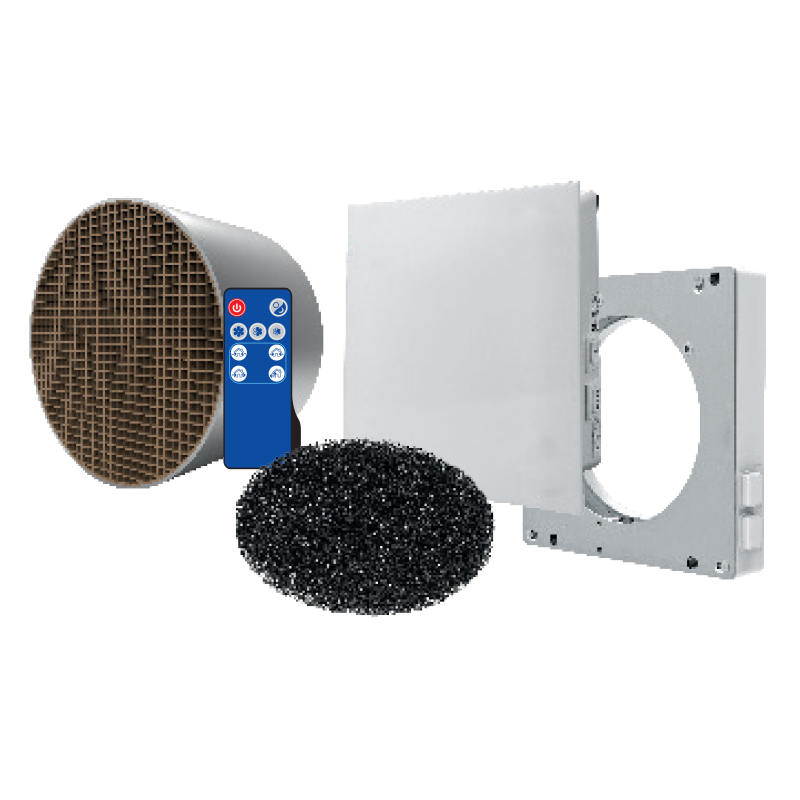

| Blauberg Completion Kit Vento Ergo A50(85)-1 Pro V.3 |
|
|

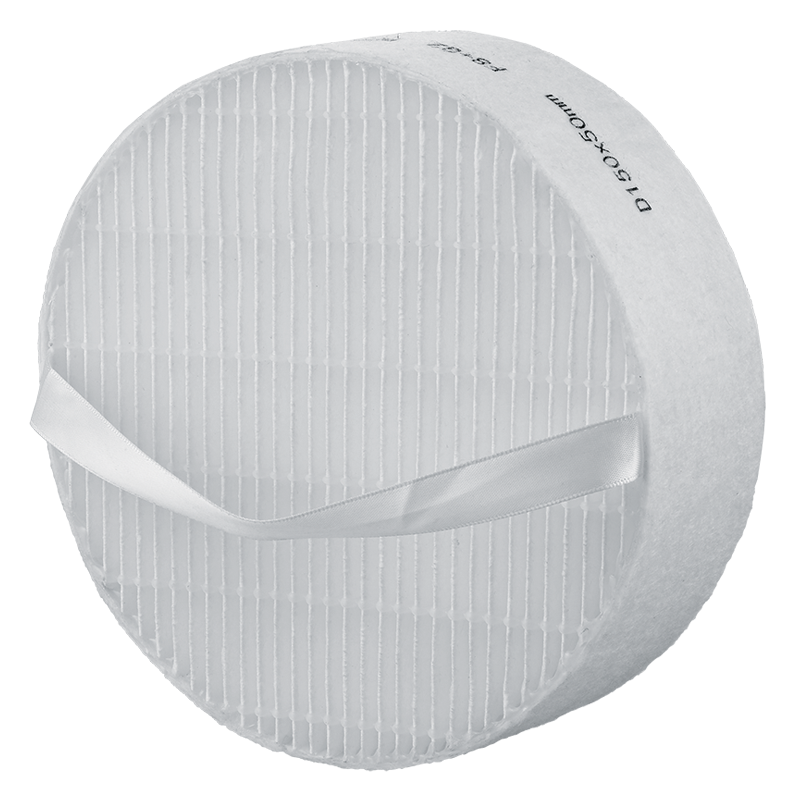

| Blauberg FP Vento Ergo A50 F7 |
|
F7 panel filter |

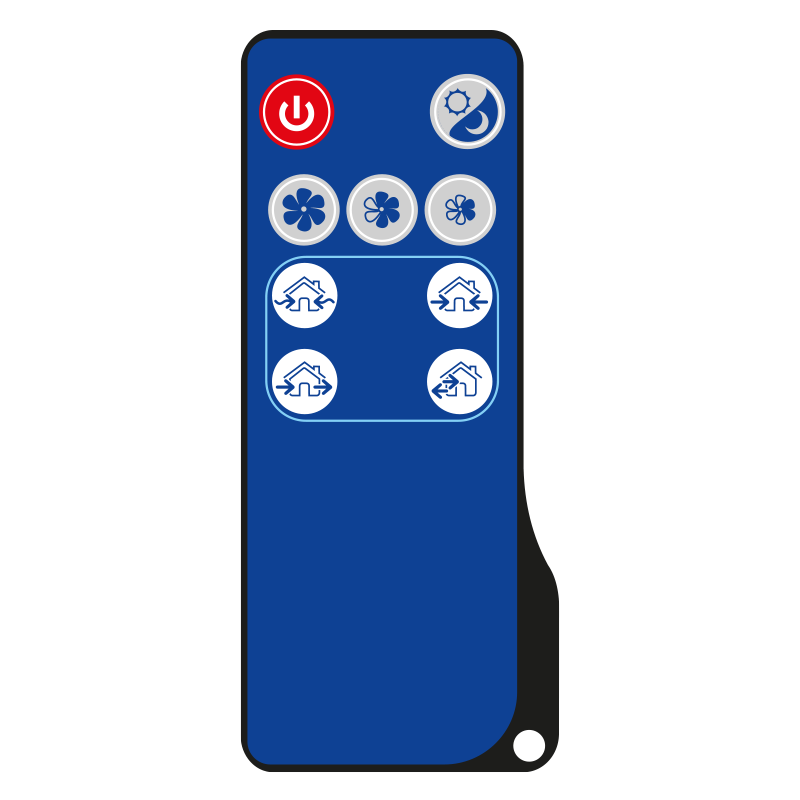

| Blauberg FB Vento Ergo |
|
Remote control |
| Name | Photo | Description |
|---|---|---|

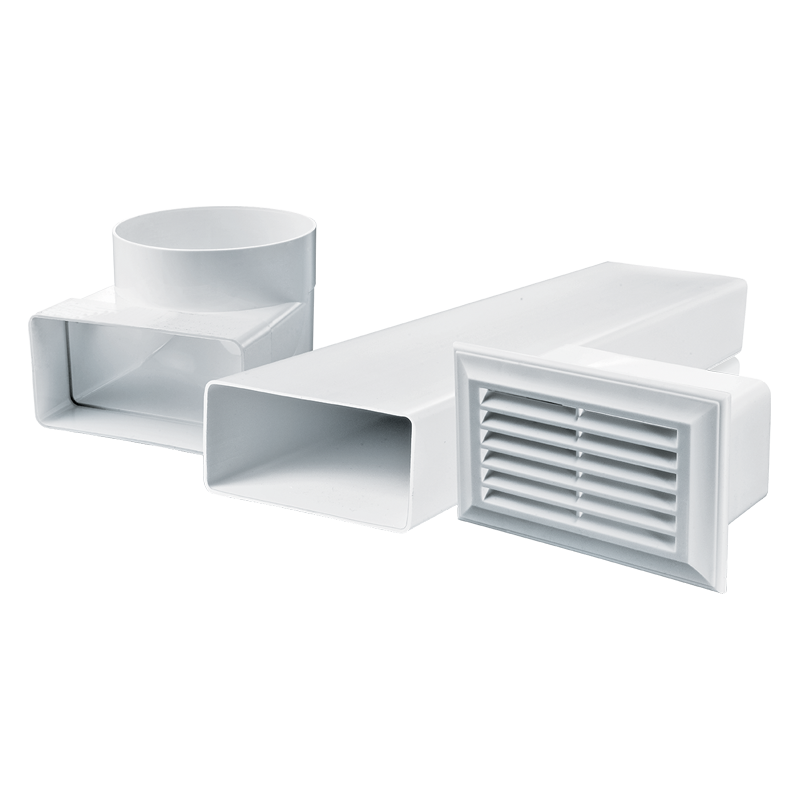

| Blauberg KIT BlauPlast 204x60-1 |
|
Kit for angular mounting (for walls with standard thickness) |
| Name | Photo | Description |
|---|---|---|

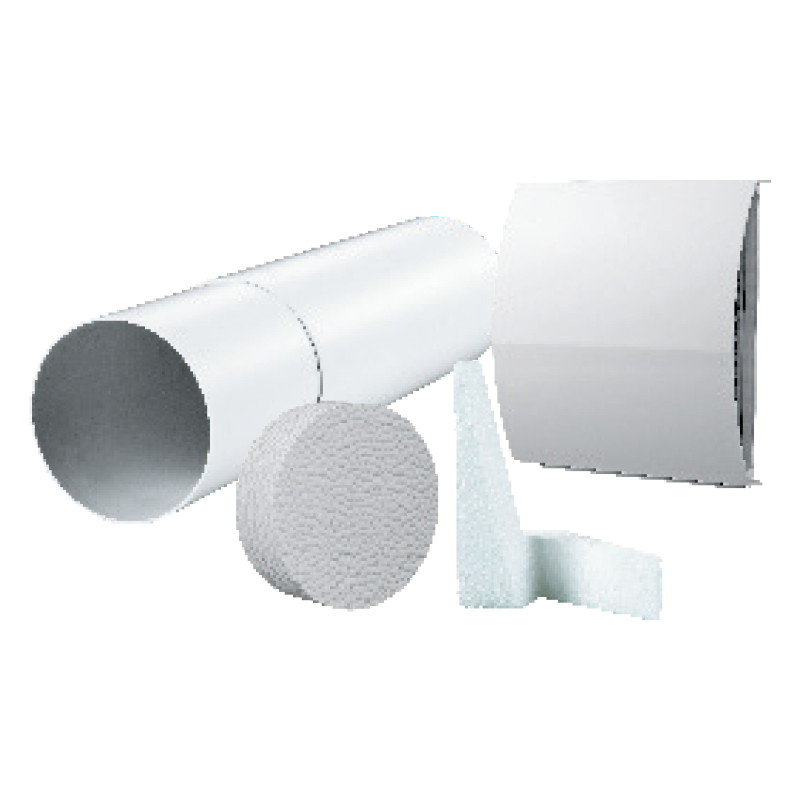

| Blauberg Pre-installation Kit Vento Ergo A50 S10 Pro |
|
Pre-installation kit for mounting into a wall with standard thickness. Includes: round telescopic air duct with the diameter of 150 mm and adjustable length from 240 to 460 mm; AH-10 white 160 outer ventilation hood; plastic foam plug; plastic foam wedges. |
