/ Product catalogue / Decentralized ventilation units / Decentralized HRU for residential buildings / Basic / Vento Eco / Vento Eco A50 C1 L035 S Pro
| Unit of measurement | Vento Eco A50 C1 L035 S Pro | |||
| Minimum supply voltage | V | 100 | ||
| Maximum supply voltage | V | 240 | ||
| Power supply frequency | Hz | 50/60 | ||
| Air flow in ventilation mode | m³/h | 15 | 30 | 50 |
| Air flow in heat recovery mode | m³/h | 8 | 15 | 25 |
| Sound pressure level LpA at 1 m | dB(A) | 21 | 27 | 29 |
| Heat recovery efficiency, max | % | 88 | ||
| Heat exchanger type | - | Regenerative | ||
| Heat exchanger material | - | Ceramic | ||
| Transported air temperature (max) | °С | 40 | ||
| Transported air temperature (min) | °С | -20 | ||
| Ingress protection rating | - | IP24 | ||
| Trademark | Blauberg | |||||
| Model | Vento Eco A50 C1 L035 S Pro | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -75.8 | A+ | -36.5 | A | -14.1 | E | |
| Type of ventilation unit | Bidirectional | |||||
| Type of drive installed | 3-speed | |||||
| Type of heat recovery system | Regenerative | |||||
| Thermal efficiency of heat recovery (%) | 76 | |||||
| Maximum flow rate (m³/h) | 25 | |||||
| Electric power input (W) | 4.3 | |||||
| Reference flow rate (m³/s) | 0.004 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.14 | |||||
| Control typology | Clock control | |||||
| Airflow sensitivity at +20 Pa and -20 Pa (%) | 0.26 | |||||
| Declared typology | RVU BVU | |||||
| Sound power level (dB(A)) | 38 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 179 | 179 | 179 | ||||
| Name | Photo | Description |
|---|---|---|
| Blauberg R 160-500 |
|
Air duct 160 mm and polystyrene foam plug |
| Blauberg R 160-700 |
|
Air duct 160 mm and polystyrene foam plug |
| Blauberg ZL1 Vento 160/150 | ||
| Blauberg FP2 Vento G3 |
|
G3 filter kit (2 pcs.) |
| Name | Photo | Description |
|---|---|---|
| Blauberg KIT BlauPlast white 160 |
|
Kit for angular mounting (for walls with standard thickness) |
| Blauberg KIT BlauPlast chrome 160 |
|
Kit for angular mounting (for walls with standard thickness) |
| Name | Photo | Description |
|---|---|---|

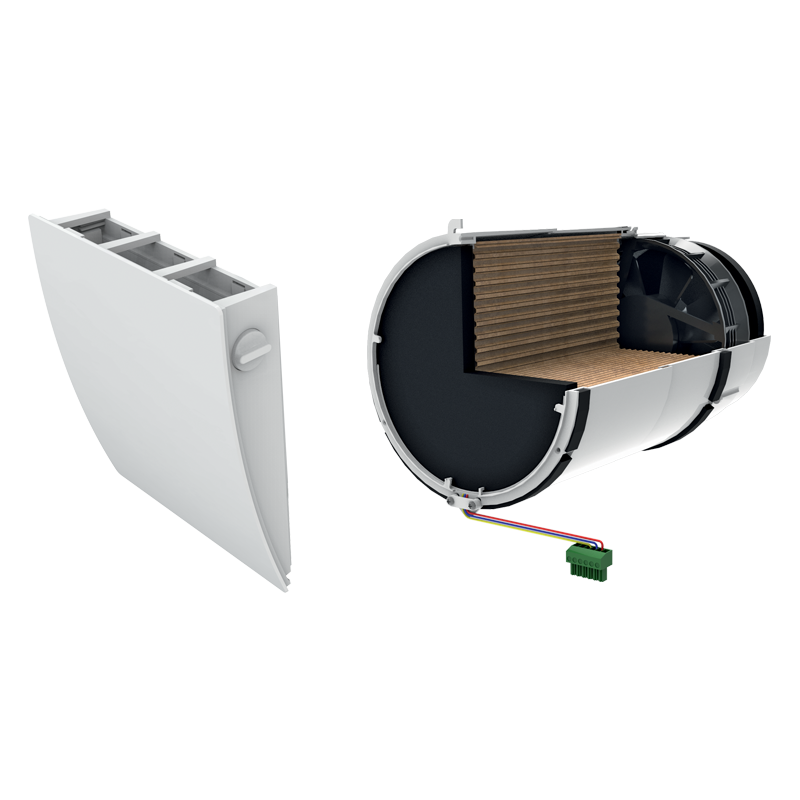

| Blauberg Completion Kit Vento Eco A50-4 |
|
Indoor grille and cartridge with heat regenerator, fan and G3 filters |
| Name | Photo | Description |
|---|---|---|

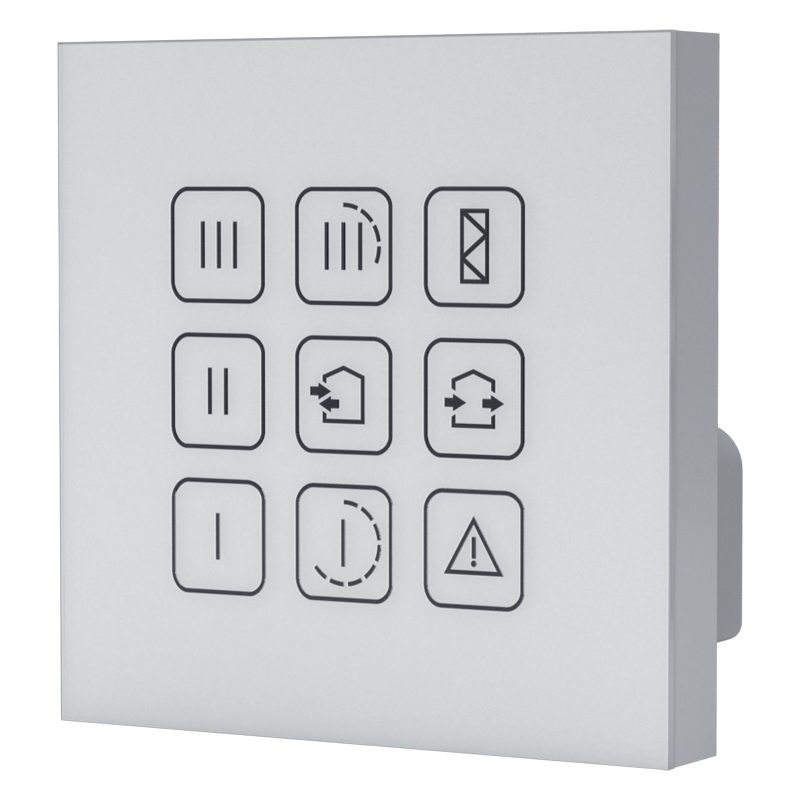

| Blauberg SE Vento Eco A50 Pro |
|
Sensor control panel |
