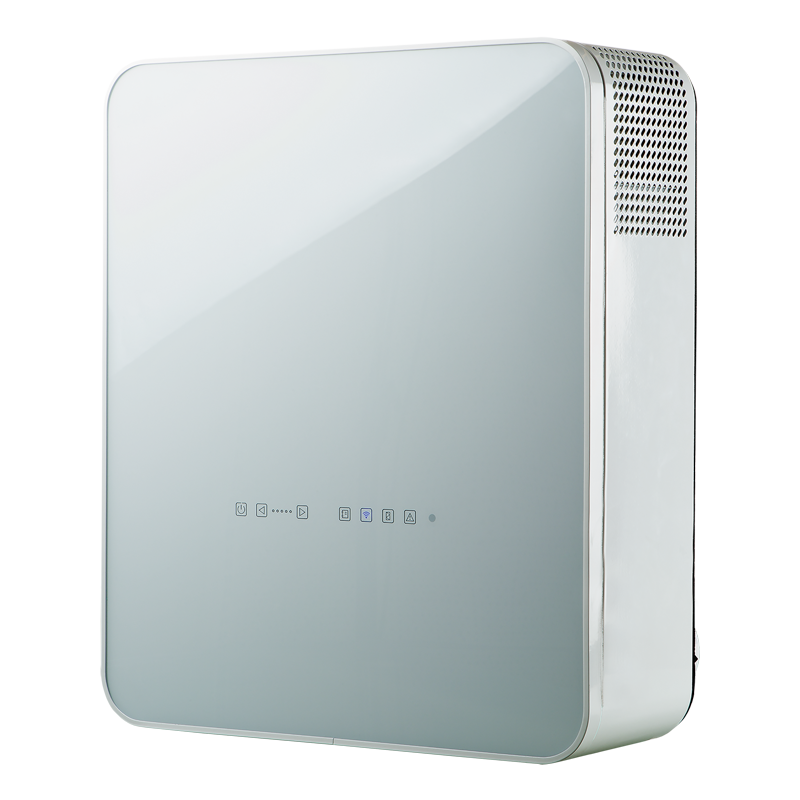

/ Product catalogue / Decentralized ventilation units / Decentralized HRU for residential and commercial buildings / Advanced / Freshbox 100 WiFi / Freshbox E2-100 WiFi
| Unit of measurement | Freshbox E2-100 WiFi | |||||
| Phases | - | 1 | ||||
| Minimum supply voltage | V | 230 | ||||
| Maximum supply voltage | V | 230 | ||||
| Power supply frequency | Hz | 50/60 | ||||
| Power of electrical preheater | W | 700 | ||||
| Power of electrical reheater | W | 350 | ||||
| Heat recovery efficiency | % | 98 | 95 | 92 | 90 | 89 |
| Heat exchanger type | - | Counter flow | ||||
| Heat exchanger material | - | Polystyrene | ||||
| Weight | kg | 31 | ||||
| Transported air temperature (max) | °С | 40 | ||||
| Transported air temperature (min) | °С | -20 | ||||
| Ambient air temperature min | °С | 1 | ||||
| Ambient air temperature max | °С | 40 | ||||
| Ambient air humidity max | % | 70 | ||||
| Ingress protection rating | - | IP22 | ||||
| Ingress protection rating of the drive | - | IP44 | ||||
| Name | Photo | Description |
|---|---|---|

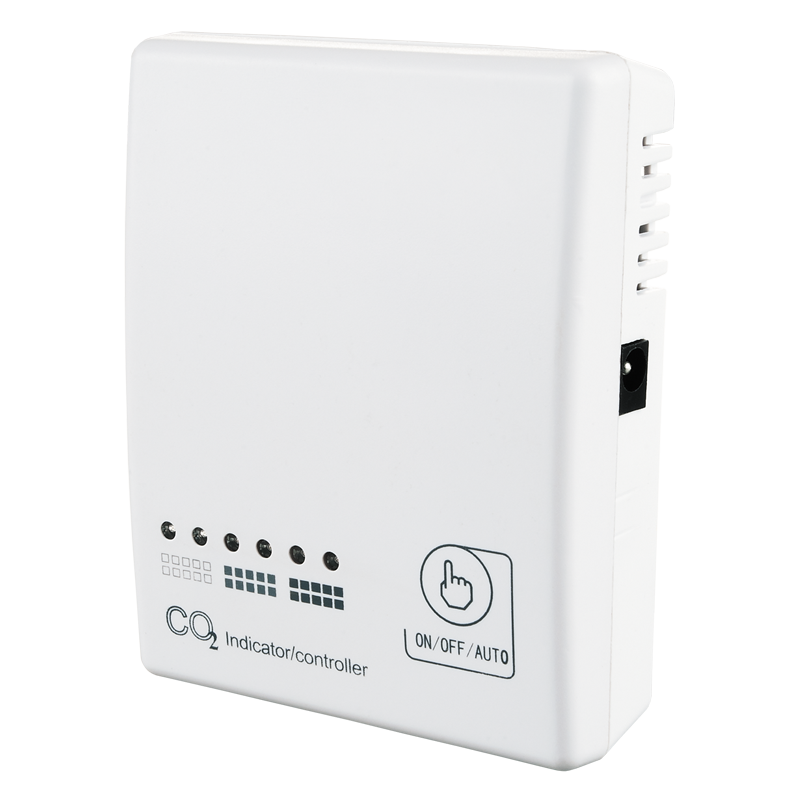

| Blauberg CD-1 |
|
CO2 sensors |

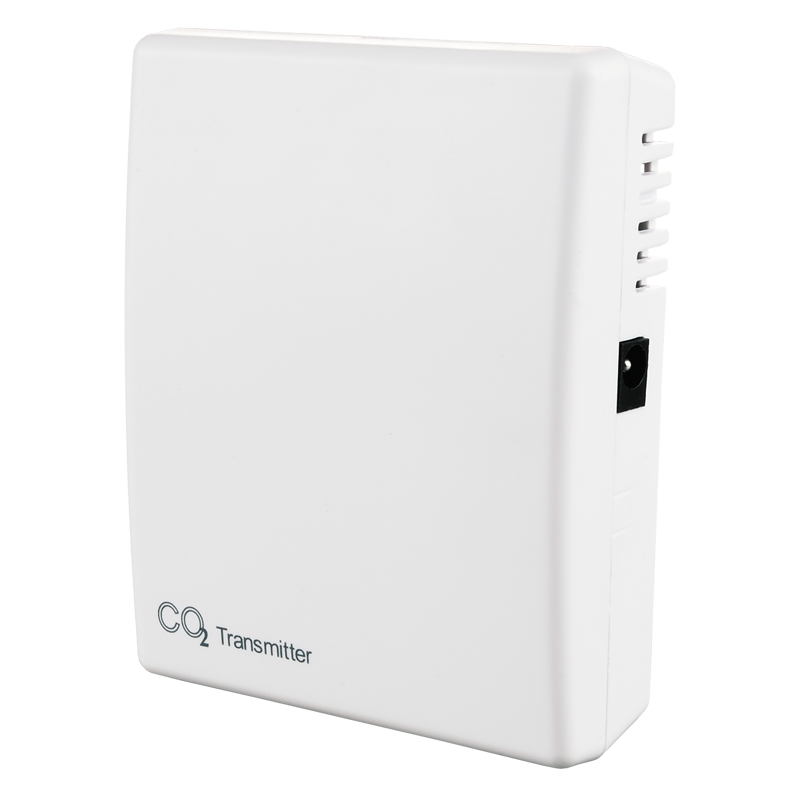

| Blauberg CD-2 |
|
CO2 sensors |
| Name | Photo | Description |
|---|---|---|

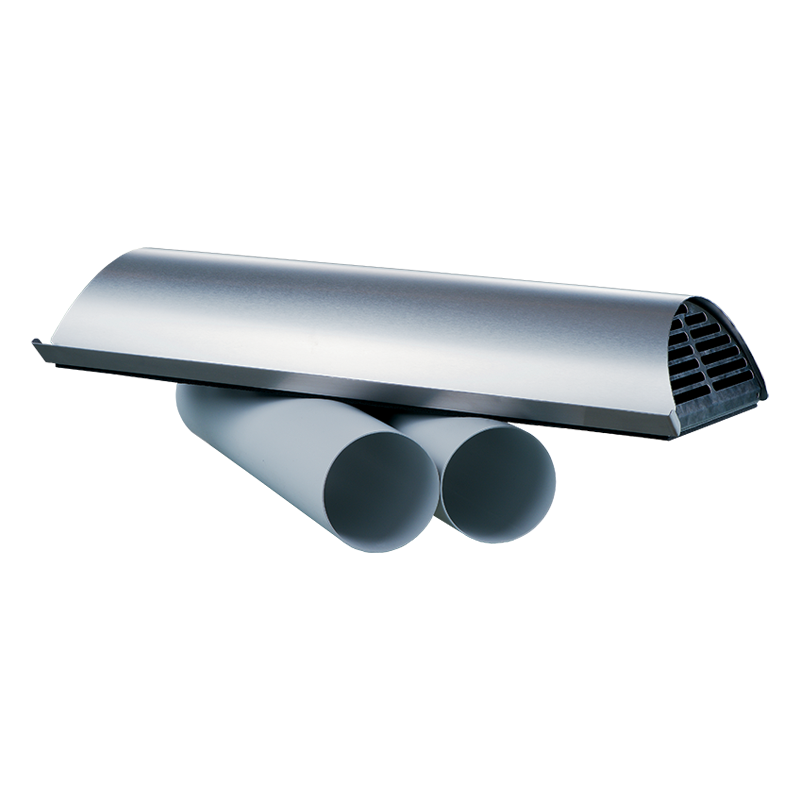

| Blauberg MS Freshbox 100 chrome |
|
|

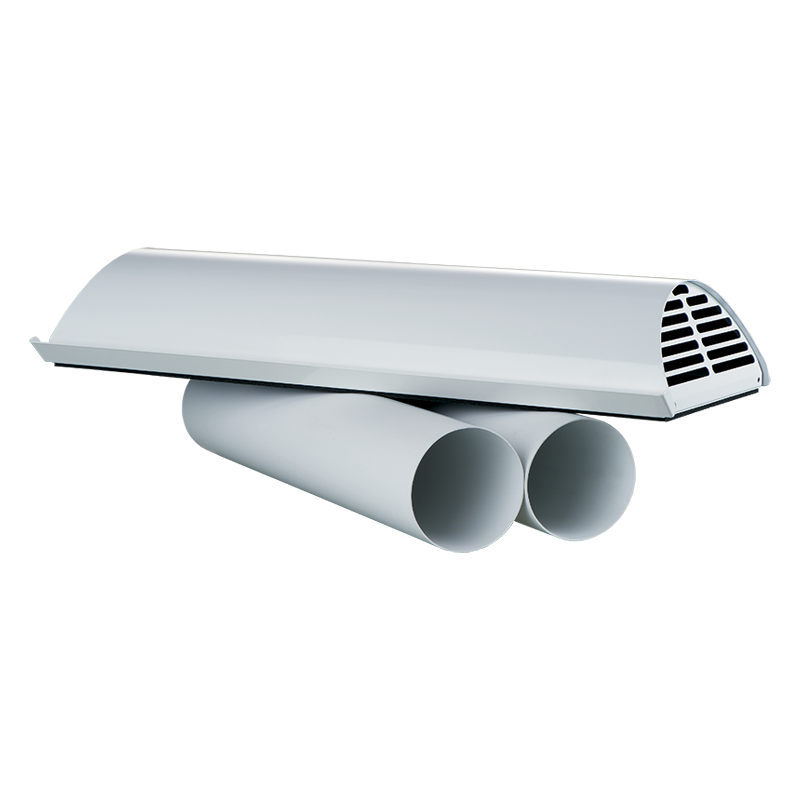

| Blauberg MS Freshbox 100 white |
|
|

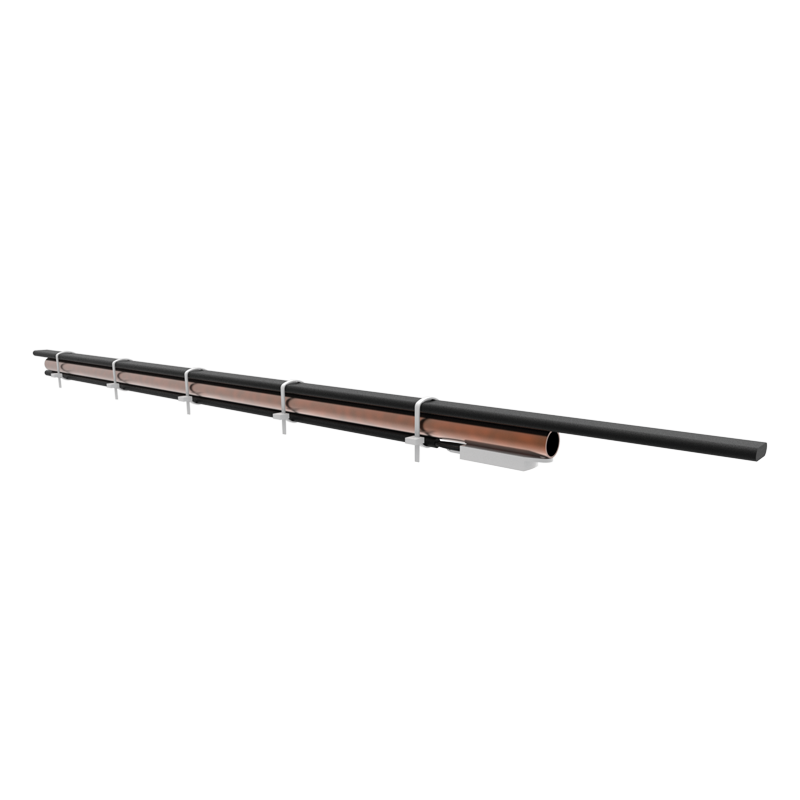

| Blauberg EH Freshbox 100 |
|
Electric heater |

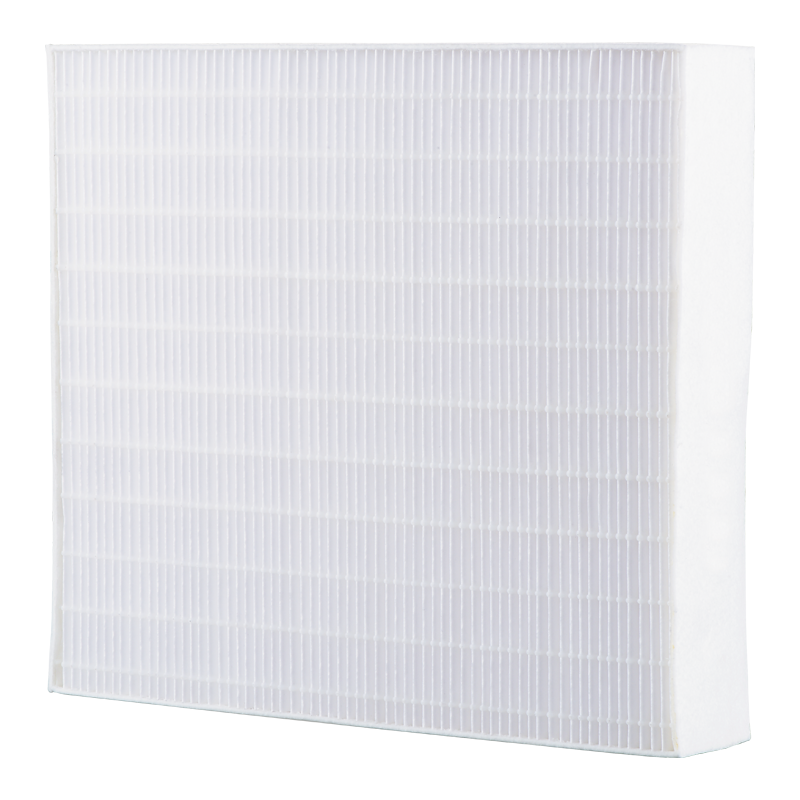

| Blauberg FP 193x158x47 F8 |
|
F8 filter |

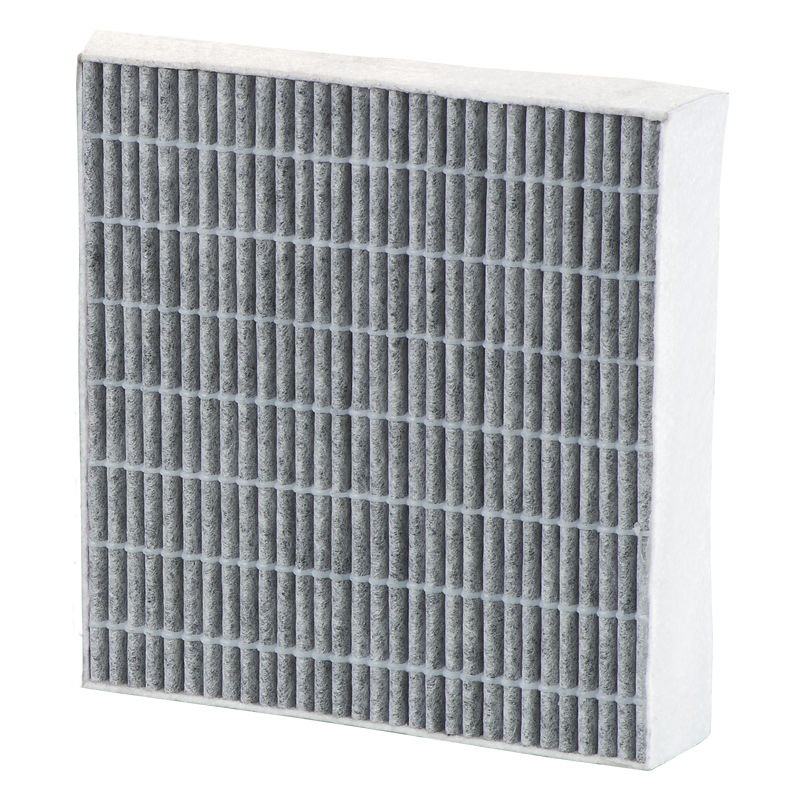

| Blauberg FP 193x158x47 F8 C |
|
F8 carbon filter |

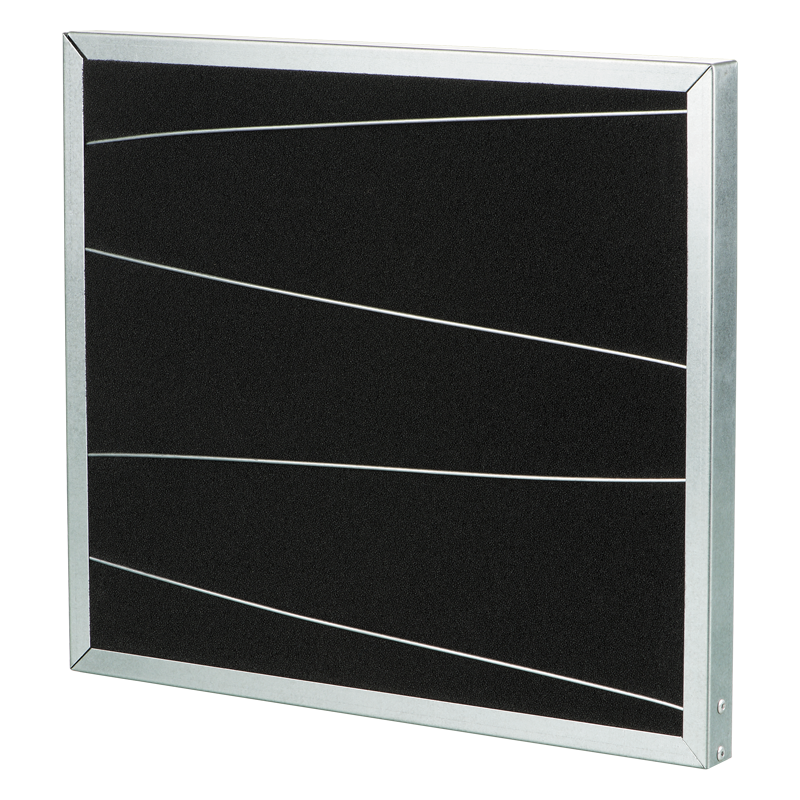

| Blauberg FP 193x158x18 G4 PPI |
|
G4 panel filter |

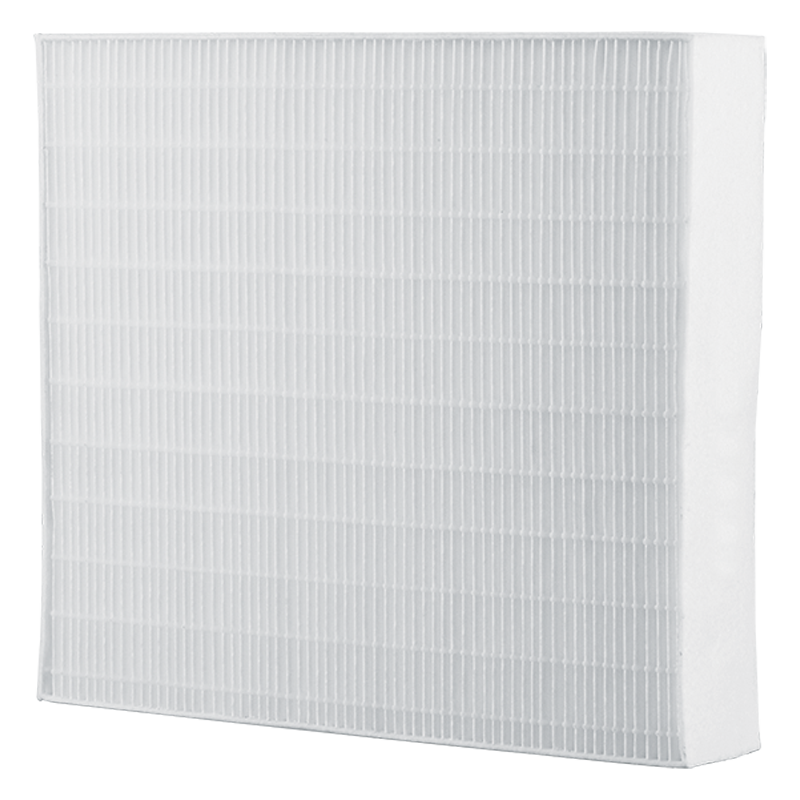

| Blauberg FP 193x158x47 H13 |
|
Supply HEPA H13 panel filter |
| Name | Photo | Description |
|---|---|---|

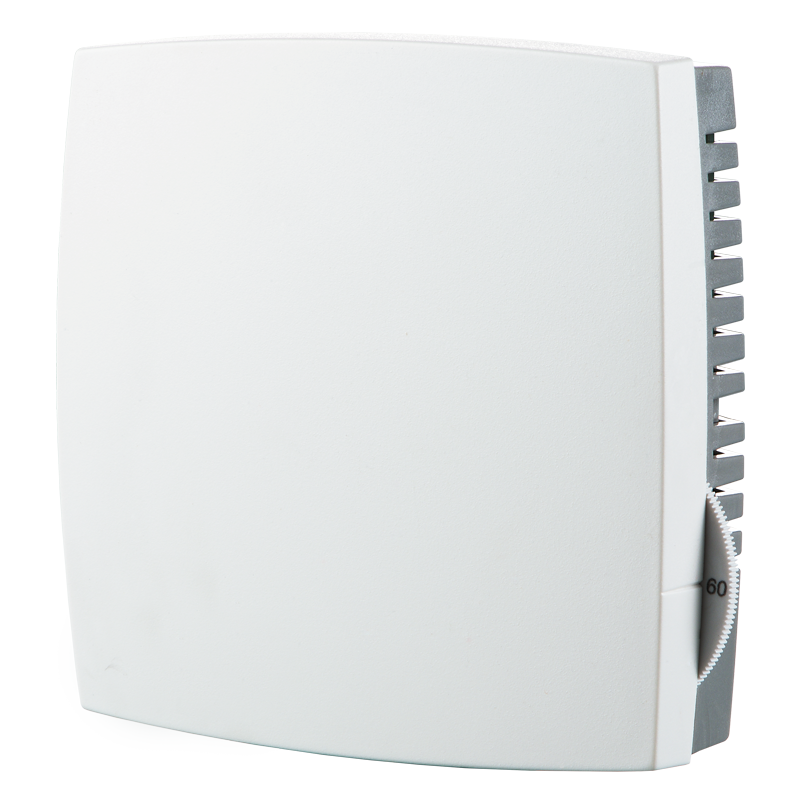

| Blauberg HR-S |
|
Electro-mechanical humidistat |
