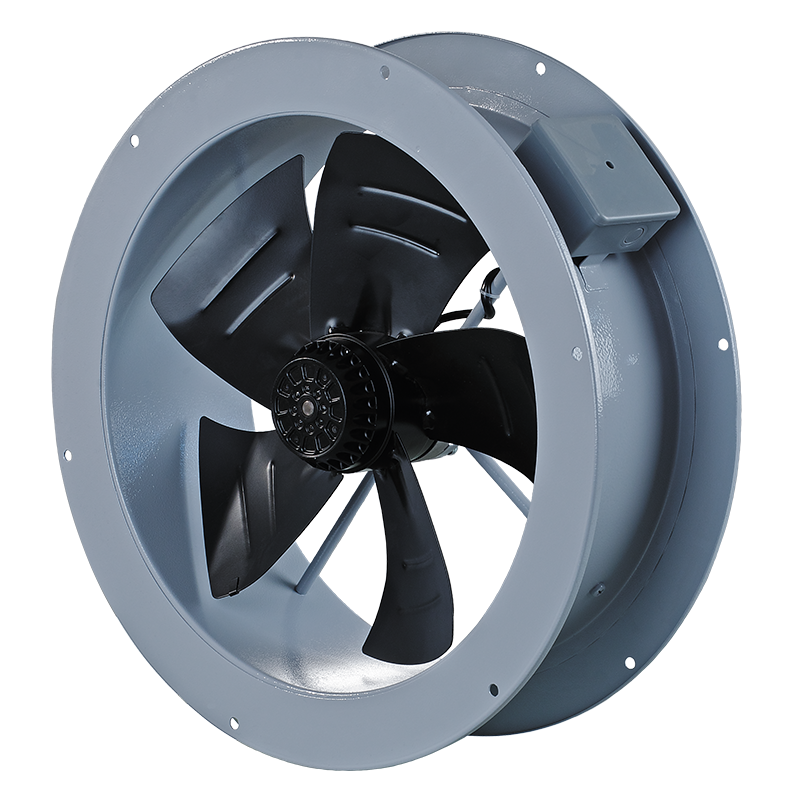

/ Product catalogue / Commercial and industrial ventilation / Axial fans / Inline / Axis-F / Axis-F 800 8D| Unit of measurement | Axis-F 800 8D | |
| Phases | - | 3 |
| Minimum supply voltage | V | 400 |
| Maximum supply voltage | V | 400 |
| Power supply frequency | Hz | 50 |
| Maximum airflow | m³/h | 15550 |
| Weight | kg | 40 |
| Transported air temperature (max) | °С | 60 |
| Transported air temperature (min) | °С | -30 |
| Ingress protection rating | - | IP24 |
| Ingress protection rating of the drive | - | IP54 |
| Impeller material | - | Coated steel |
| ØD | ØD1 | ØD2 | Ød | B | L |
|---|---|---|---|---|---|
| 800 | 845 | 880 | 11,5 | 910 | 280 |
